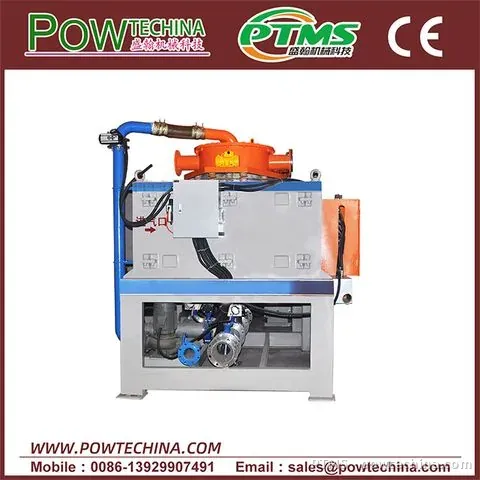

Product description
The water-cooled electromagnetic slurry automatic iron remover is a type of new style high efficient iron remover. The water will be circulated inside the hollow copper pipe via the circulating pump, which will take away the heat generated by the energized copper pipe. Based on this special structure, the water-cooled electromagnetic slurry automatic iron remover has the following advantages: the magnetic induction intensity is high, and the magnetic field intensity may be adjusted as per the materials conditions. Meanwhile, the temperature rise inside the equipment is small, and the magnetic induction intensity has small attenuation during the long-term operation period. Besides, its operating cycle is long, while it also has wide adaptability of ore feeding size and density, and high beneficiation efficiency, and it is easy to operate and maintain.
Operation process
It is required to connect the power supply unit, open the slurry inlet valve and slurry outlet valve, close the back-slurry valve and iron dumping valve, and open the magnetizer. When all the slurries pass through the slurry iron remover, it is required to close the inlet valve and slurry outlet valve, open the back-slurry valve, and drain the remaining slurries in the iron remover via the back-slurry valve. Then, it is required to disconnect the magnetic field, close the back-slurry valve, and open the iron dumping valve, so as to dump the magnetic substances stuck to the magnetic medium.
Scope of application
It is widely applied to remove the iron powder, micro-iron powder, magnetic substances, and others contained in the glaze slurry of the ceramics, mining industry, chemistry, food and other industries.

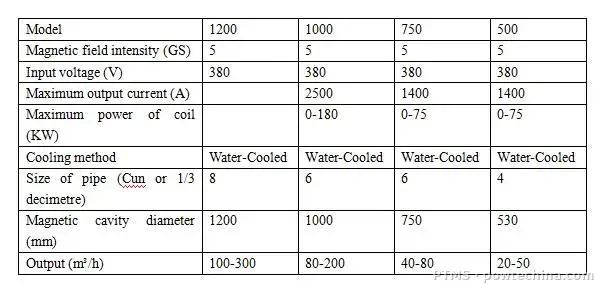

Parameters of product
;)
;)
;)
