graphite deironing

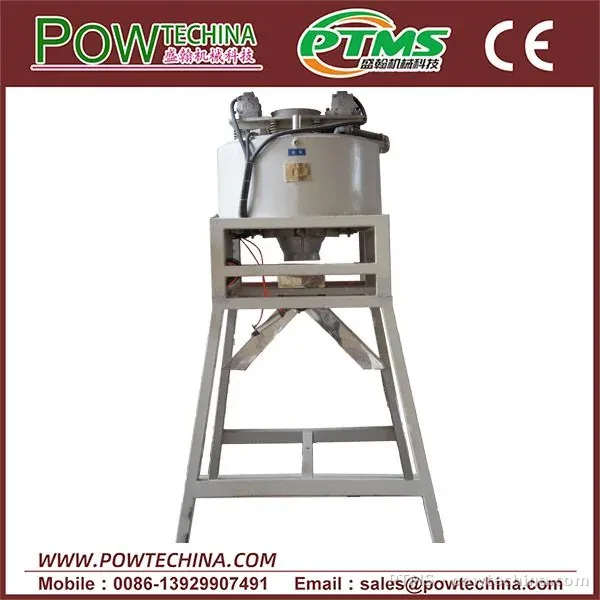

Graphite magnetic separator
Contact Us

Detail

Magnetic magnetic separator

PTMS MAGNETIC SEPARATOR

what is magnetic separation used for?



     PTMS magnetic separation equipment manufacturer has developed a new magnetic separator for positive and negative powder materials, Electromagnetic dry powder magnetic separation, full automatic magnetic separator (graphite magnetic separator)

     The electromagnetic dry powder machine mainly aims at the new type of iron removing machine developed by the cathode and the negative powder material. Its magnetic system is characterized by the most magnetic poles of the wrapping angle. The absolute value of the magnetic flux density in the machine selection area is more average. The separation effect of the magnetic system is played. The different field strength can be designed according to the different properties of the ore. In addition, the electromagnetic dry powder machine is selected in the separation process. There is no need to overcome the effect of gravity and the resistance of raw materials. When the non magnetic minerals are separated from the magnetic field, the minerals can be well separated from the magnetic barrel under the action of gravity, and the electromagnetic drying machine increases the mechanical vibration device. It can not only improve the effect of iron removal, but also facilitate the realization of iron abandoning.

Main technical parameters:

Background magnetic field: 430ml;

Input voltage: Exchange 380 volts ± 10%;

Output voltage: DC500V ±10%;

 Output:500-1500kg/hDepending on the stickiness of the powder;

Insulation grade: E

Magnetic cavity diameter: 220mm;

Water consumption:About 1 cubic meters per hour when the water temperature is 30 C



Body weight: 1200kg;



Body diameter: 100m;



Whole machine size: 1000mm× 1400mm ×2300mm
