Drawer Type Magnetic Separators
Drawer Type Magnetic Separator
Drawer Type Magnetic Separator by PTMS (Foshan Powtech). Drawer-type (magnetic grate) separators with stacked magnetic bars that clean powders and small granules.
- Free 5–10 kg sample test before you order, report in 5 days
- 24-hour burn-in test on every unit before shipment
- Installation guidance and remote support for overseas buyers
Request a quote Free sample test
Applications
Specifications
The only published figure for the Drawer Type Magnetic Separator is a magnetic field strength of 10000 Gauss (stated in the product description); capacity, power, voltage, cooling and dimensions are confirmed for your application. Drawer-type (magnetic grate) separators with stacked magnetic bars that clean powders and small granules.
| Model | Magnetic field strength (Gauss) | Capacity / throughput | Coil or motor power | Input voltage | Cooling method | Dimensions & weight |
|---|---|---|---|---|---|---|
| Drawer Type Magnetic Separator | 10000 | Contact us for specs | Contact us for specs | Contact us for specs | Contact us for specs | Contact us for specs |
Other specifications for this item are not yet published. Contact us for specs. We configure each machine for your material after a free sample test.
Product details
Working principle

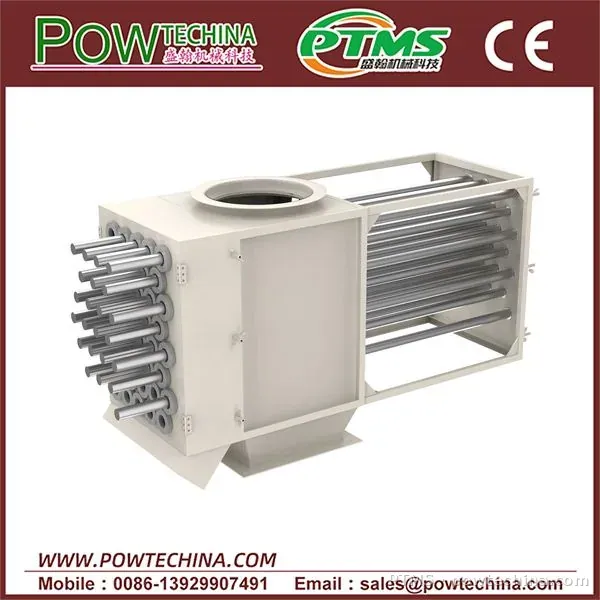

The mineral particles are derived from the feeding port of the magnetic rod box through the permanent magnetic rods in the magnetic rod box. The magnetic material in the mineral particles is adsorbed on the magnetic rod because of the magnetic force. The nonmagnetic mineral particles are passed through the magnetic rod and discharged from the discharge port. At the same time, the permanent magnetic rods are pulled by the cylinder device to make the ferromagnetic materials adsorbed on the permanent magnetic rod. The quality of the material is automatically separated and dropped from the iron removal port.
Product advantage
With strong magnetic strength, the magnetic field strength of the magnetic rod on the 25mm diameter can be up to 10000 Gauss. It is convenient and quick to exhaust the magnetic rod. The magnetic material adsorbed on the magnetic rod will fall off automatically. The material can continue to work without stopping the feed. It is easy to install and fix thread holes, screw holes, rings, tapered cusp, etc. 3 layers, 5 layers, 8 layers and 12 layers of magnetic rod boxes can be made.
