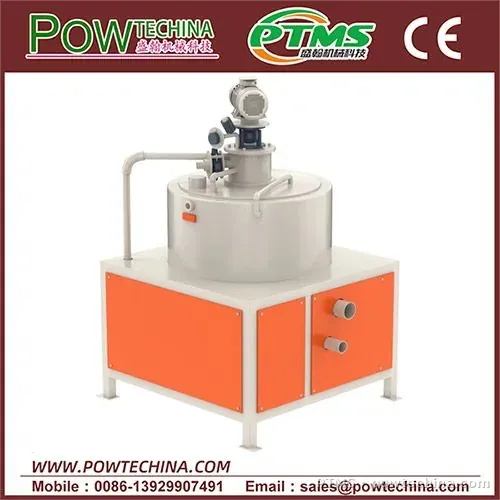

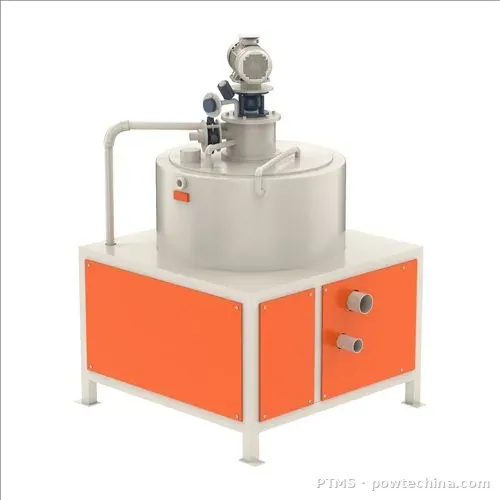

Electromagnetic magnetic separator for ceramic glaze
Detail
electromagnetic separation
PTMS magnetic separation
how to separate two magnets?
Product introduction
Magnetic slurry machine,It belongs to the upper feed,Single drum wet magnetic separator.High magnetic field,Uniform magnetic field distribution,High gradient,The effect of iron removal is obvious;The cooling system USES forced water cooling to dissipate heat,Good circulation,You can lower the temperature by about 20c,Extended the service life of electromagnetic wire,The drive valve USES imported material,The valve body is strong and durable,No residual pulp overflow after closing;Removal of iron by vibration and high pressure water pump flushing,Rinse thoroughly,No residue;The mesh pieces are refined from special materials,There is no remanence after the power of the exciting coil is cut off,Easy to take off the iron,No manual operation is required for fully automatic operation,Iron removal is convenient and fast,No residue at all。

model |
WS1.5K160 |
WS3K89 |
WS7K190 |
WS7K250 |
WS7K300 |
WS11K250 |
WS20K400 |
The intensity of magnetic separation/T |
2.5 |
2.5 |
2 |
3 |
3 |
3.5 |
3.5 |
The input voltage/V |
220 |
380 |
380 |
380 |
380 |
380 |
380 |
Maximum output current/A |
7 |
7 |
10 |
18 |
18 |
20 |
37 |
Coil maximum power/KW |
1.5 |
3 |
3 |
7 |
7 |
11 |
20 |
Coil maximum power |
E |
E |
E |
E |
E |
E |
E |
Coil maximum power |
Water and oil cooling |
Water and oil cooling |
Water and oil cooling |
Water and oil cooling |
Water and oil cooling |
Water and oil cooling |
Water and oil cooling |
Magnetic cavity diameter/MM |
160 |
89 |
190 |
250 |
300 |
250 |
400 |
production/T |
1-1.5 |
0.2-0.5 |
5-10 |
10-25 |
10-30 |
10-25 |
20-60 |
Overall dimensions/MM |
1200*1200*1850 |
850*750*100 |
1000*950*1550 |
1320*1200*1850 |
1300*1400*1900 |
1320*1200*1850 |
1850*1600*1850 |
The host weight/KG |
180 |
150 |
510 |
1050 |
1070 |
1210 |
3000 |
Operation process:
Power on device,Open the pulp inlet valve and the pulp outlet valve and close the pulp return valve and iron discharge valve,Turn on the magnetizing device.When all slurry passes through the material magnetic separator,Close the inlet and outlet valves,Open the backgrouting valve and drain the remaining slurry from the magnetic separator through the backgrouting valve,Then break the magnetic,Shut down grouting valve、Pulp discharge valve and pulp return valve,Open the drain valve,The removal of iron from the magnetic medium。
Scope of application
Magnetic paste magnetic separator is widely used to remove ceramics,Mining, chemistry, electronics,Iron powder found in raw materials from food and other industries,Microiron and magnetic materials.
