PTMS MAGNETIC SEPARATOR
what is magnetic separation？
product introduction:
The permanent magnet belt separator adopts a high magnetic rare earth Nd-Fe-B magnetic block and a ferrite magnetic block to form a composite magnetic system with high magnetic field intensity. The magnetic field is very deep, and it is not easy to demagnetization. Therefore, the equipment handling capacity is strong for production fluctuation, and the selection effect is good. It is suitable for iron removal in the ceramic industry, such as magnetic separation of dry powder, quartz sand, refractory materials, plastic granules and so on.

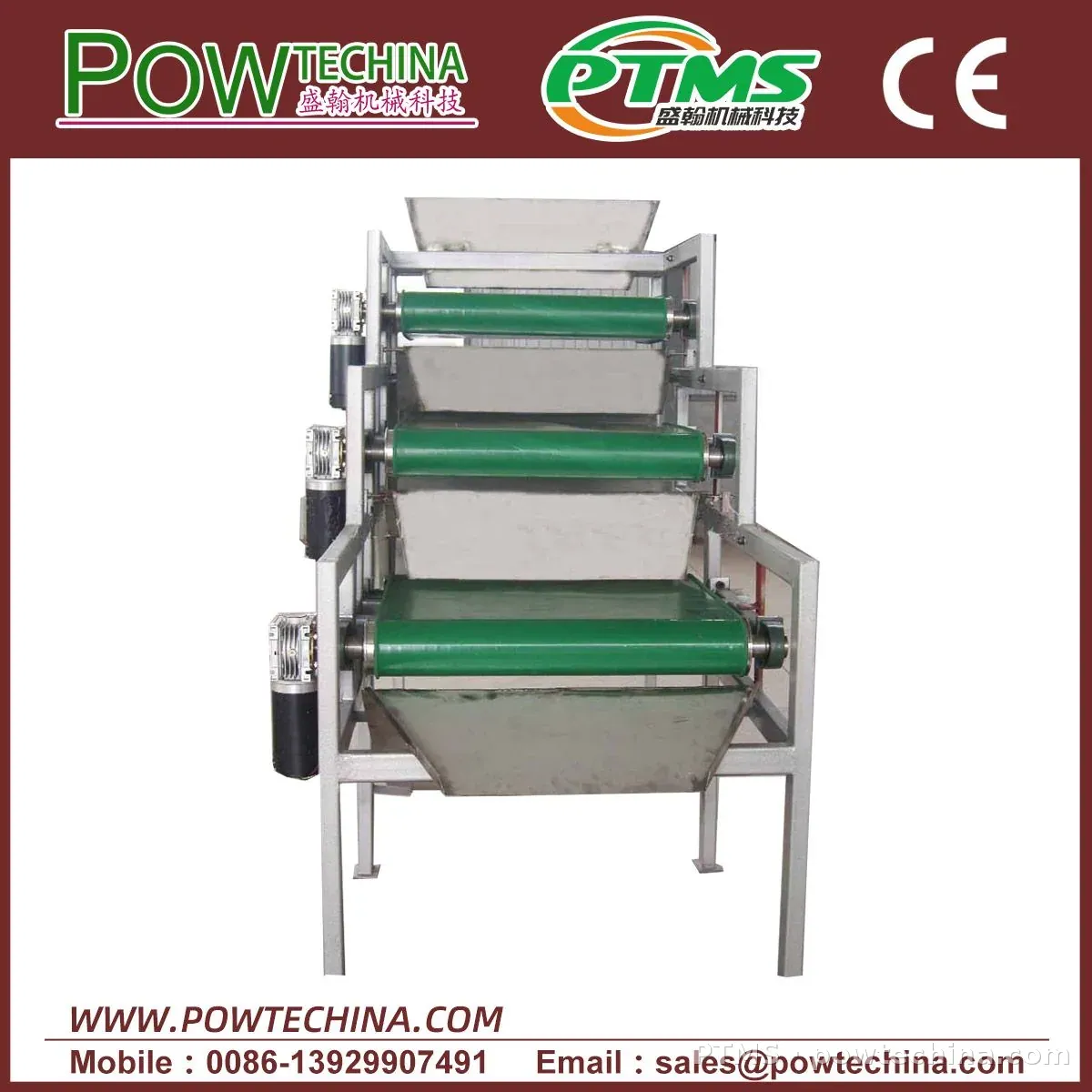

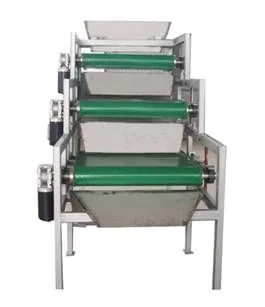

Permanent magnetic belt magnetic separator
Model: Belt type iron removal machine
Power consumption: 1.5
Belt speed(minute/turn): 46
Motor speed: 1390
Magnetic Roller Specifications(MM): Φ150*1200
Productive capacity(T): 4-10
Input voltage: 380
|
Model |
Power waste(KW) |
Belt speed (minute / turn) |
Motor speed |
Magnetic roller specification (MM) |
Production capacity (T) |
Input voltage (V) |
|
Belt type magnetic separator |
1.5 |
46
|
1390 |
Φ150*1200
|
4-10
|
380
|
|
Can customize the magnetic rod box according to the customer's request |
Working principle
The mineral particles are from the feeding port of the magnetic rod box through the permanent magnetic rods in the magnetic rod box. The magnetic material in the mineral particles is adsorbed on the magnetic rod because of the magnetic force. The non magnetic mineral particles are passed through the magnetic rod and discharged from the discharge material. At the same time, the permanent magnetic rod is pulled by the cylinder device to make the ferromagnetic material adsorbed on the permanent magnetic rod automatically. The drop is discharged from the iron removal port.
Product advantage:
1. Large magnetic surface area, strong magnetic force, long life; The structure is simple, easy to operate, and there is no need to manually remove iron;
2. Suitable for iron removal of granules, especially 0.1 mm x 0.1 mm to 10 mm x 10 mm large particle iron removal raw materials; Small loss,
3. Low failure rate, high output, cleaner iron removal; Single layer, double layer and multi-level iron removal can be customized according to customer requirements.
