Permanent Magnetic Separators
Permanent Magnetic Roller Series

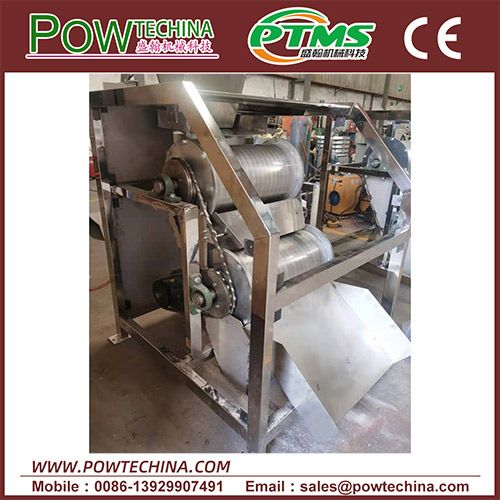

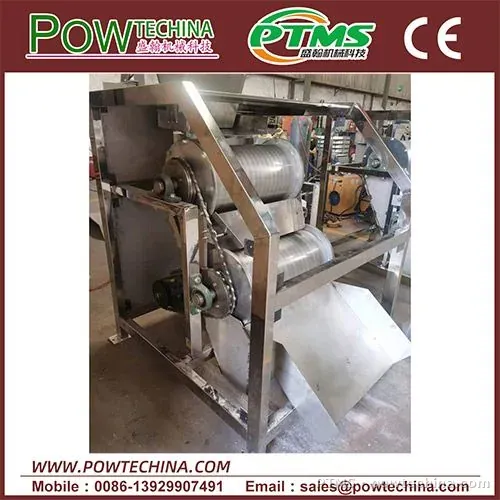

Permanent Magnetic Roller Series by PTMS (Foshan Powtech). Permanent magnetic separators with rare-earth NdFeB or ferrite magnetic systems. No power consumption; for dry powders, granules and pipelines.
- Free 5–10 kg sample test before you order, report in 5 days
- 24-hour burn-in test on every unit before shipment
- Installation guidance and remote support for overseas buyers
Request a quote Free sample test
Applications
Specifications
Detailed technical parameters for the Permanent Magnetic Roller Series were not published on the original PTMS website; contact us for the current datasheet. Permanent magnetic separators with rare-earth NdFeB or ferrite magnetic systems. No power consumption; for dry powders, granules and pipelines.
| Parameter | Value |
|---|---|
| Magnetic field strength | Contact us for specs |
| Capacity / throughput | Contact us for specs |
| Coil or motor power | Contact us for specs |
| Input voltage | Contact us for specs |
| Cooling method | Contact us for specs |
| Dimensions & weight | Contact us for specs |
Specifications for this item are not yet published. Contact us for specs. We configure each machine for your material after a free sample test.
Product details
PTMS Magnetic Separator Series Product Features

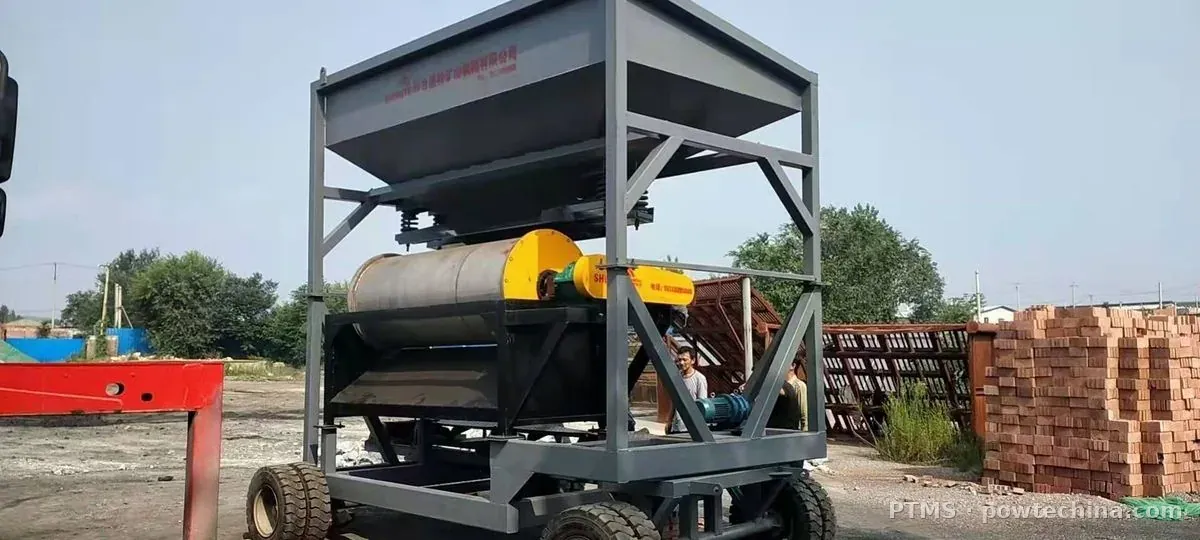

The permanent magnetic drum separator mainly consists of the rack, permanent magnetic drum, transmission gear, feeding box, trough body, water washing device, magnetic system adjusting device and other main elements. The magnetic system is suspended at the upper supporting point of mandrel, which directly falls on the rack shaft seat. The magnetic system deflection angle may be adjusted within a certain scope, by virtue of the magnetic system adjusting device.
this is great feature of PTMS Magnetic Separator Series The permanent magnetic drum separator has good sorting and recovery effects, due to its large drum diameter, smooth, stable and even ore feeding and discharging, and long sorting belt. Meanwhile, due to the large drum diameter and reduced rotation speed, the rotation becomes more stable and reliable, featured in the minor noise and convenient maintenance.
Operation process
When the slurry enters into the magnetic zone, the strong magnetic ores will be stuck to the surface of the drum, and the weak magnetic and non-magnetic mineral particles will be dumped and removed. The strong magnetic ores stuck to the surface of drum will rotate together with the drum and be taken out of the magnetic zone. They will be flushed into the concentrate tank with the flushing water, completing the sorting operation.
Scope of application
The permanent magnetic drum separator is applied to sort the strong magnetic ores with much stronger magnetism and remove the strong magnetic ores contained in the nonmetallic minerals.
